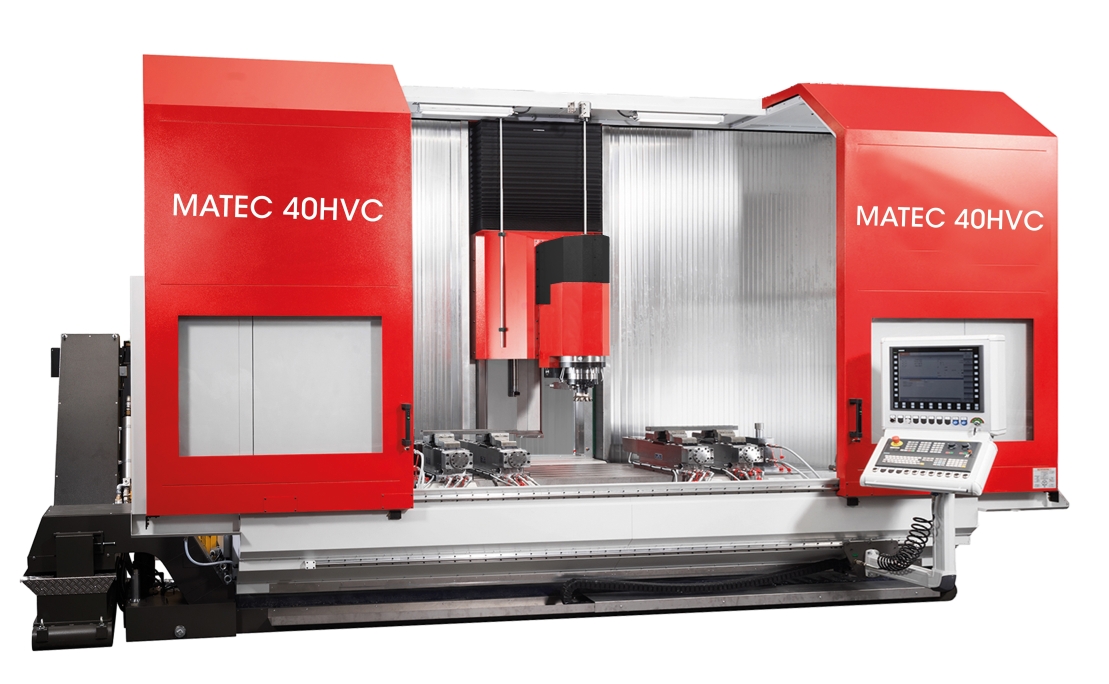

MATEC 40HVC - Unique for Their Flexibility

Swiveling spindle head for complex machining

Interested?

  • Basic machine
    X = 4,000 mm
    Y = 1,125 mm
    Z = 1,100 mm | horizontal
    Z = 975 mm | vertical
  • Control unit Heidenhain TNC640
  • 1-axis NC swivel head, continuously swivelling +/- 105°
  • Motor spindle 8,000 1/min, 68 kW, 460 Nm
  • Taper HSK 100
  • 40 tool places
  • NC rotary, integrated in the machine table
  • Speed max. 6.25 1/min, face plate Ø 1,000 mm
  • Internal coolant unit 20 | 40 bar
  • Partition wall
  • 3D radio touch probe
  • Further options available

More information needed? Feel free to contact us. We are gladly at your disposal.

Delivery time: available from January 2022
