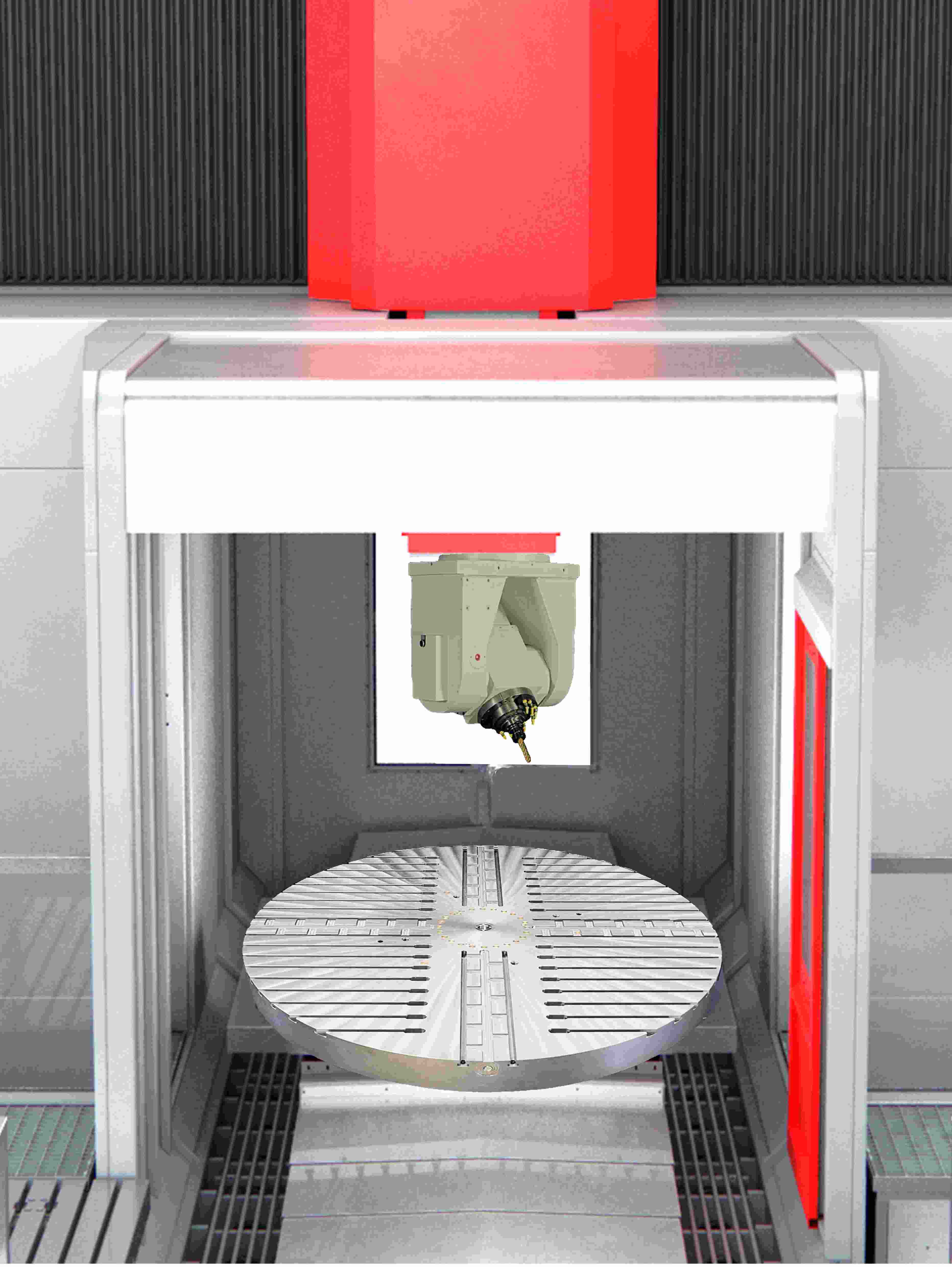

MATEC 30PTR | 40PTR - Stationary Gantry | Moving Table | Integrated CNC rotary table
5-Axis Gantry Series | 2-Axis fork head
Performance Class HSK63 | HSK100
CNC Control Unit: SIEMENS | HEIDENHAIN
| Work area | |
| X-axis | 3,750 | 4,750 | 5,750 | 6,750 mm |
| Y-axis | 3,400 | 4,400 mm |
| Z-axis | 1,500 | 1,800 | 2,100 mm |
| Clearance height | 1,350 | 1,650 | 2,050 mm |
| Clearance width | 2,320 | 3,320 mm |
| Main spindle | |
| Speed | 10,000 | 15,000 | 24,000 1/min |
| Power max. | 96 kW |
| Torque max. | 690 Nm |
| Tool magazine | |
| Tool places | 40 | 48 | max. 680 pcs. |
| Tool length | 450 mm |
| Tool weight | 10 | 20 kg |
Interchangeable head magazine (option)
Ready to take 4 different machining heads.
Automatic change procedure.
 |
|
| 2-Axis fork head | |
| Swivel radius | 225 | 280 mm |
| Rotation angle C-axis | 360° |
| Direct measuring system | ± 2.8" |
| Rotation angle A-axis | ± 110° |
| Direct measuring system | ± 2.8" |
| Clamping table | |
| CNC rotary table | Ø 1,800 | Ø 2,200 mm |
| Table load max. | 4,000 kg |
| (depending on table size and drive system) | |
| Axis drive with ball screw | |
| Feed | rapid traverse | 30 m/min |
| Option: X-axis with linear drive or toothed rack drive. | |
| Option: | |
| 2-Axis universal head | 2-Axis fork head torque drive |
 |
 |
