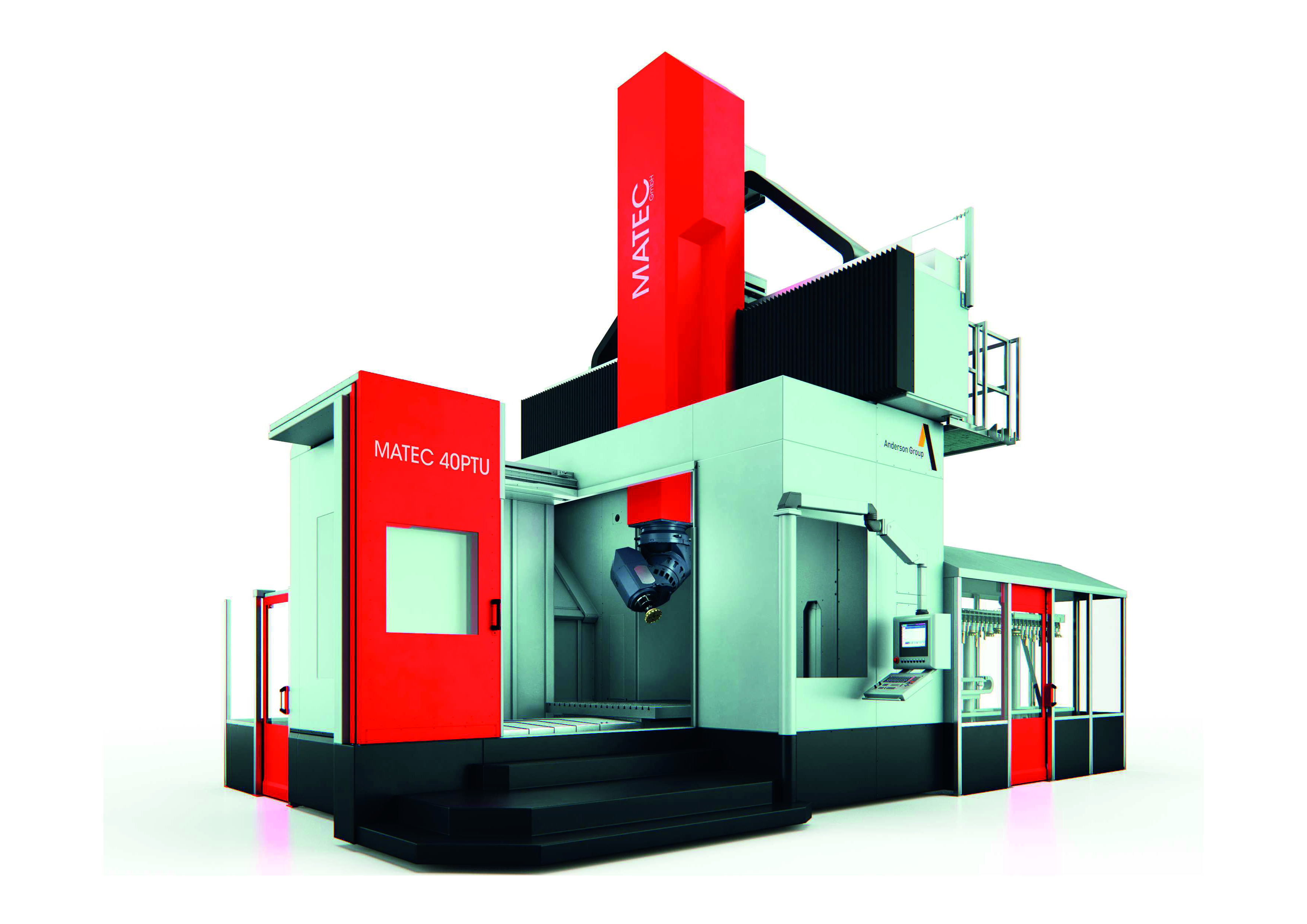

MATEC 30PTU | 40PTU - Stationary Gantry | Moving Table
5-Axis Gantry Series | 2-Axis universal head
Performance Class HSK63 | HSK100
CNC Control Unit: SIEMENS | HEIDENHAIN
The MATEC gantry series with 2-axis universal head combines a variety of economical applications in all angular positions. Universal use for every industry, every component and every material.
The innovative design with stationary gantry and moving table ensures maximum stability and precision. It enables high-speed machining while achieving the highest quality surfaces, often without further reworking.

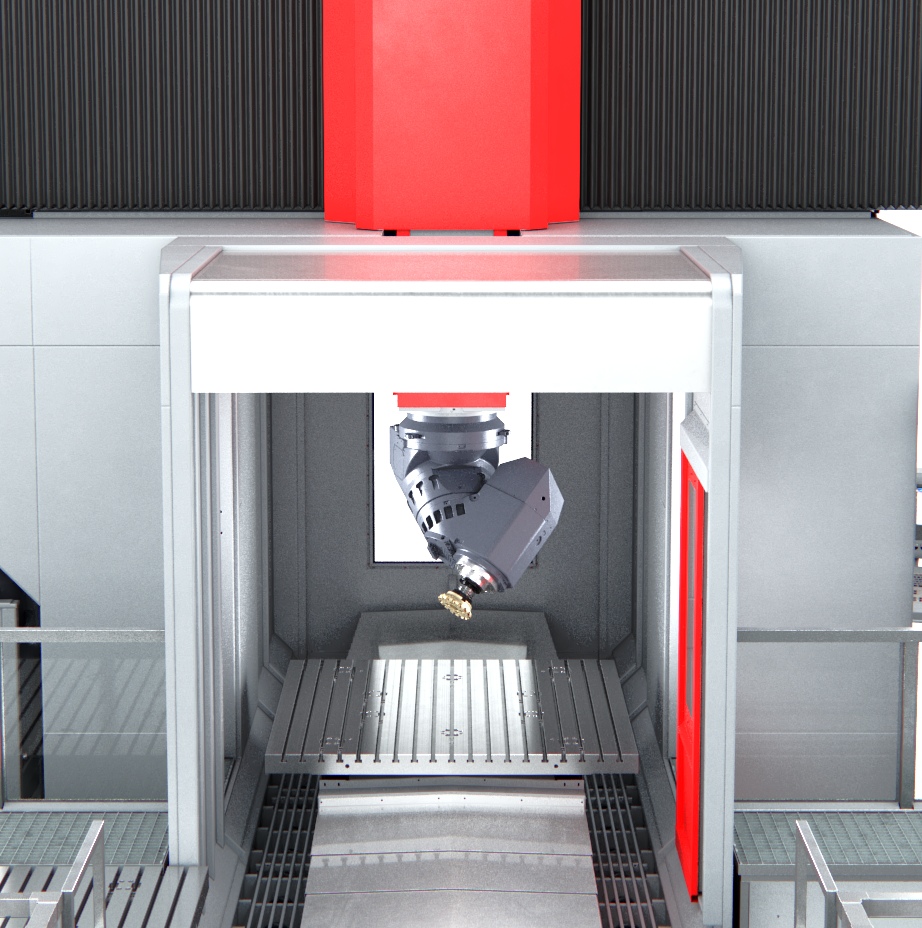

| Work area | |
| X-axis | 3,750 | 4,750 | 5,750 | 6,750 mm |
| Y-axis | 3,400 | 4,400 mm |
| Z-axis | 1,500 | 1,800 | 2,100 mm |
| Clearance height | 1,350 | 1,650 | 2,050 mm |
| Clearance width | 2,320 | 3,320 mm |
| Main spindle | |
| Speed | 10,000 | 15,000 | 20,000 1/min |
| Power max. | 96 kW |
| Torque max. | 690 Nm |
| Tool magazine | |
| Tool places | 40 | 48 | max. 680 pcs. |
| Tool length | 450 mm |
| Tool weight | 10 | 20 kg |
Interchangeable head magazine (option)
Ready to take 4 different machining heads.
Automatic change procedure.
 |
|

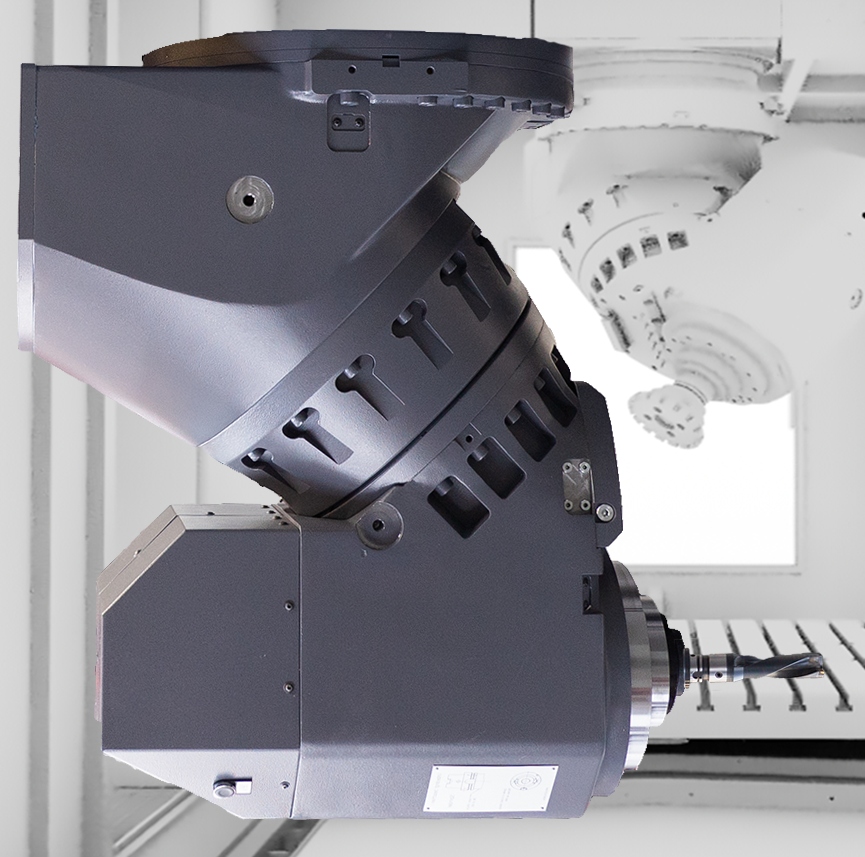

| 2-Axis universal head | |
| Swivel radius | 440 mm |
| Rotation angle C-axis | ± 180° |
| Direct measuring system | ± 1.9" |
| Rotation angle A-axis | ± 180° |
| Direct measuring system | ± 1.7" |
 |
|
| Clamping table | |
| Length | 2,000 | 3,000 | 4,000 | 5,000 mm |
| Width | 2,000 | 3,000 mm |
| Table load max. | 4,000 kg |
| (depending on table size and drive system) | |
| Axis drive with ball screw | |
| Feed | rapid traverse | 30 m/min |
| Option: linear drive or toothed rack drive. | |
