Performance Class HSK63 | HSK100
CNC Control Unit: SIEMENS | HEIDENHAIN

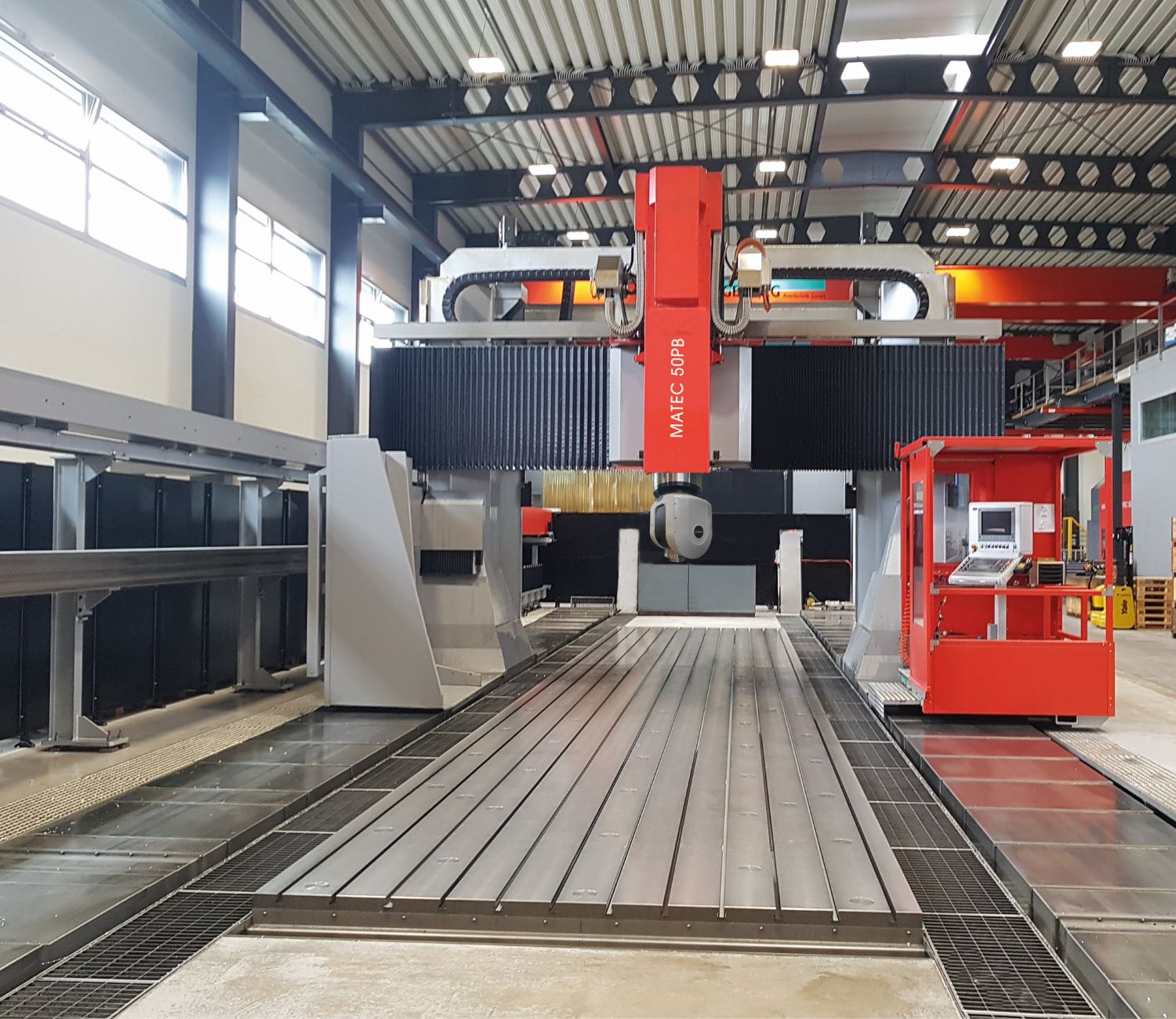

In addition to the Z-axis, gantry machines of the series MATEC 50PB have an automatically height-adjustable gantry beam as a W-axis.

Combined with the large Z-axes, the W-axis with 800 mm or optionally with 1,100 mm, ensures the machining of very high workpieces.

The infinitely variable 2-axis torque fork head enables 5-sided bzw. 3D machining of the workpiece in convincing top quality.

The moving gantry with all axis movements convinces with a smaller space requirement compared to the stationary gantry. The machine itself is only slightly longer than the travel of the X-axis.

In addition, stationary machine tables are structurally much more resilient. Due to its accessibility, this machine series allows to perfectly handle heavy weight workpieces.

Optimal component structures guarantee the best results in terms of compliance and resonance behaviour. They are the basis for stability, precision, maximum contour fidelity and surface quality on the workpiece.

Work area
X-axis	6,000 - 20,000 mm
Y-axis	5,000 mm
Z-axis	1,100 | 1,500 mm
W-axis	800 | 1,100 mm
(height adjustment gantry beam)
Axis drives
Y- | Z-axis	Ball screw
X-axis	Linear drive
Feed | rapid traverse	30 m/min
Clearance height max.	3,370 mm
Clearance width	4,400 mm
Main spindle
Speed	10,000 | 15,000 1/min
Power max.	96 kW
Torque max.	690 Nm
Tool magazine
Tool places max.	max. 680 pcs.
Tool length	450 mm
Tool weight	20 kg

2-Axis fork head torque
Swivel radius	280 mm
Rotation angle C-axis	± 360°
Direct measuring system	± 2,8"
Rotation angle A-axis	± 110°
Direct measuring system	± 2,8"
Clamping table
Table length	6,500 - 20,500 mm
Table width	2,000 - 3,000 mm
Table load	4,000 kg/m²
