MATEC 50HVU | 50U | 70HVU | 70U - Standard equipment – machines and options
Performance class HSK100 | SK50
Standard equipment
- 2-Axis universal head, infinitely variable (HVU)
- 1-Axis universal head, infinitely variable (U)
- CNC control Heidenhain TNC 640
- Speed: 8,000 1/min
- Motor spindle: Drive power max. 37 kW
- Torque: 306 Nm
- Tool holder HSK100
- Tool change with shuttle, 40 tool places
- Axis drives with ball screw drive
- Roller linear guides in all axes
- Direct path measuring systems
- Standard machine table with T-slots
- Full work area enclosure with roof
- Chip conveyor
- Coolant unit
Options for the basic machine
Motor spindle
- Higher power motor spindle
― Speed range: 10,000 to 15,000 1/min.
― Power: up to max. 96 kW
― Torque: up to max. 690 Nm - Tool holder SK50
Tool magazine
- Extension from 48 to 280 tool places4
- Drive system:
― X-axis with linear drive - ― X-axis with rack and pinion drive
Options independent of the performance class

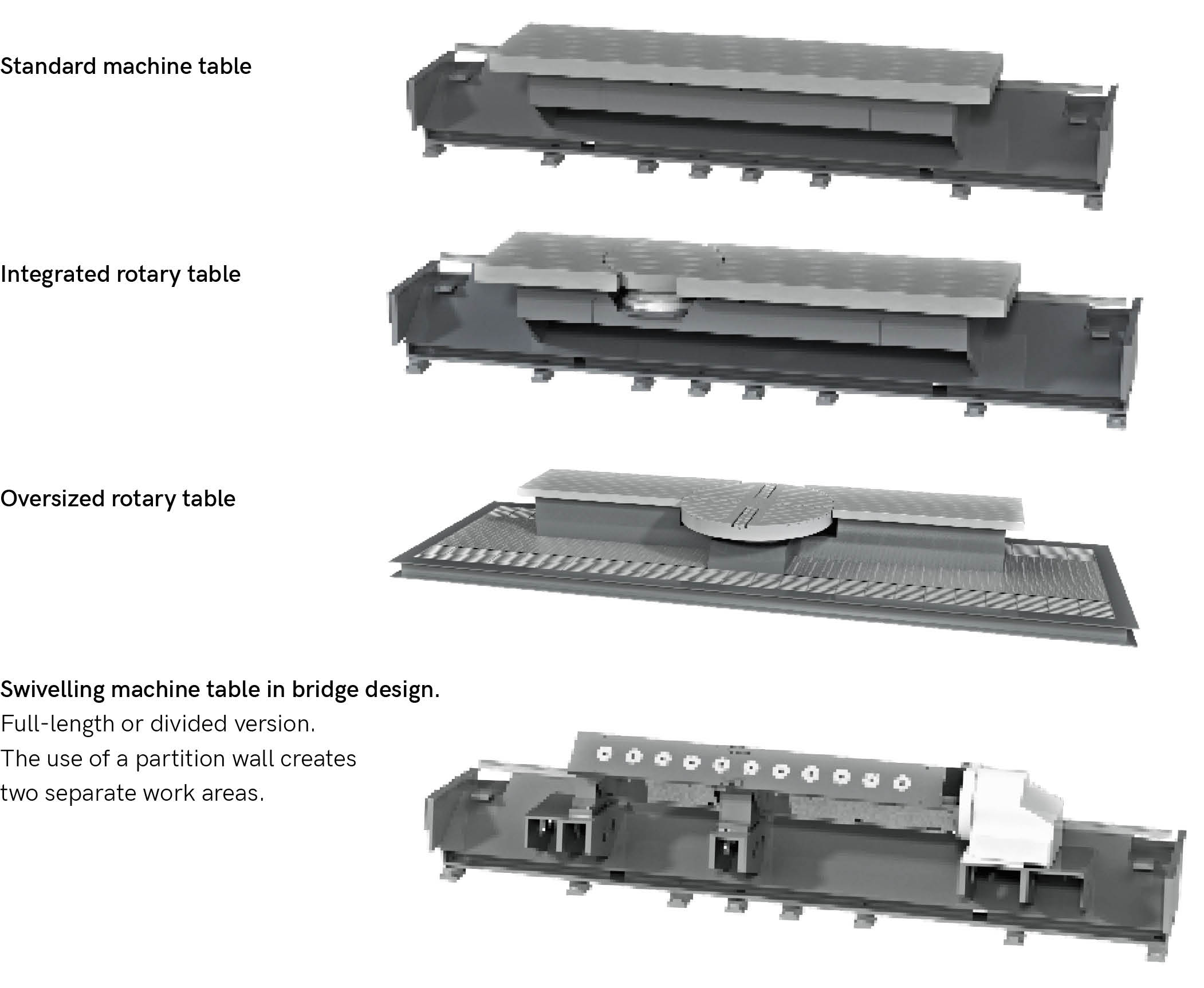

Machine table assembly group
- Customised machine table assembly group
- CNC slide unit as W-axis for larger swivel circles
- Integrated or top-mounted rotary tables, position freely selectable
- CNC rotary tables for positioning and turning
- Other table heights
- Adaptation of T-slots to customer's existing fixtures and clamping systems
- Zero-point clamping systems according to customer requirements
- Swivelling machine tables according to the customer's requirement profile
- Partition wall for pendulum machining, fixed or variable position
- Automatic work area doors
Tool magazines | capacity extensions
- Additional magazines, pick-up magazines, automation and special equipment
- Mill turn with automatic balancing in the machine
- Multi-spindle and angle heads
- Deep hole drilling
- Loading automation, pallet change
