The standard machine for complex 5-side machining

• High stability and precision
• Short delivery times

Standard equipment in all machines

• 1-Axis CNC swivel head, infinitely variable
• Heidenhain TNC 640 control
• Tool holder HSK63 DIN 69893
• Tool magazine 48 places
• CNC rotary table Ø 630 / 800 / 1,150 mm
• Work area full enclosure with roof
• Direct path measuring system in X-, Y- and Z-axis
• Chip conveyor

Additional options

• Siemens 840D sl
• Tool holder SK40 DIN 69871
• Tool magazine extension to 280 places
• High-pressure coolant unit
• Rotary tables mounted for shaft machining
• Work area partition wall

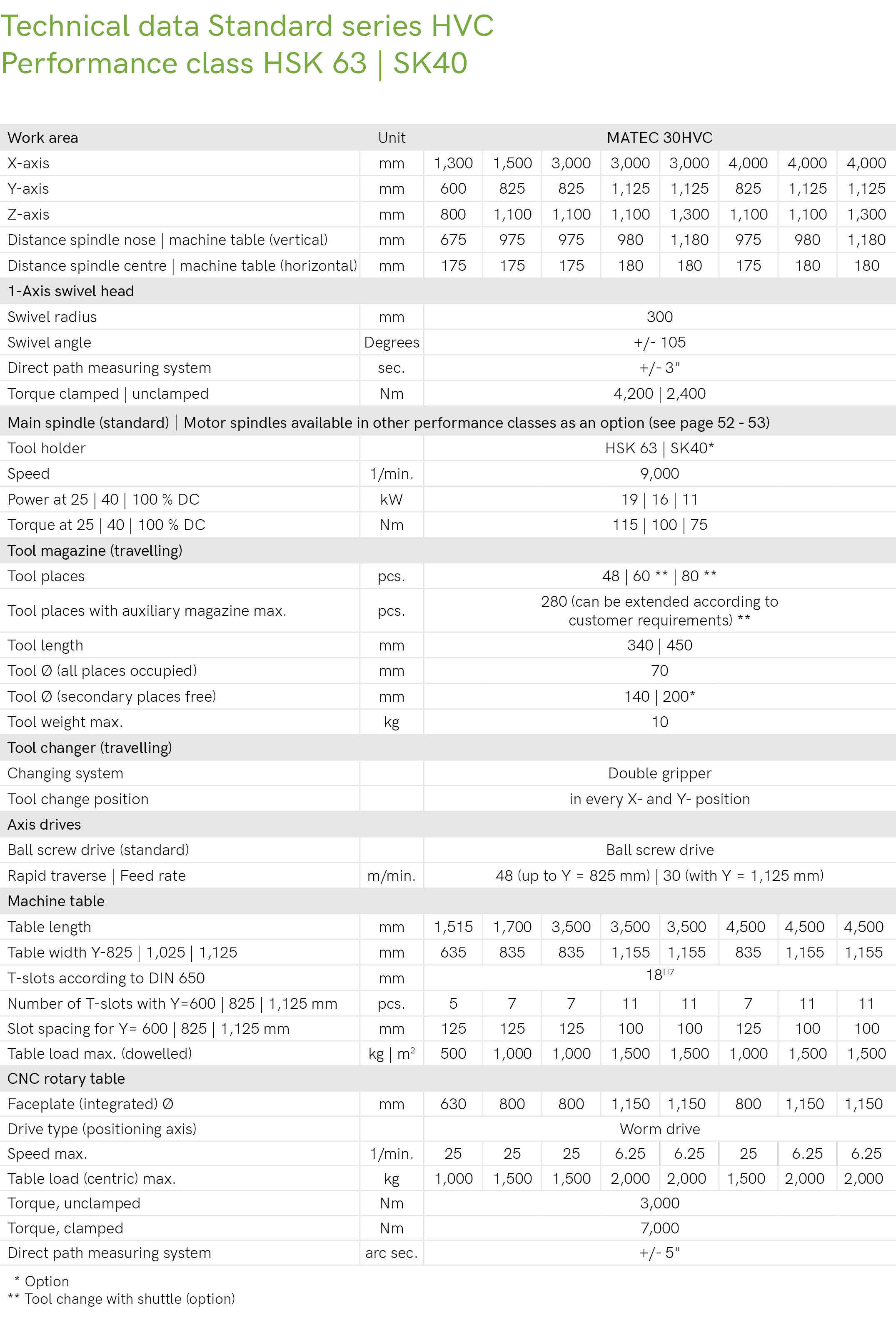

Motor spindle
Speed: 9,000 1/min
Power max: 19 kW
Torque max: 115 Nm
Tool holder: HSK63 | SK40

Swivel head
Swivel angle: ± 105° degrees infinitely variable
Direct path measuring
system: ± 3“
Clamping forces: 2,400 Nm unclamped
4,200 Nm clamped

Integrated CNC rotary table

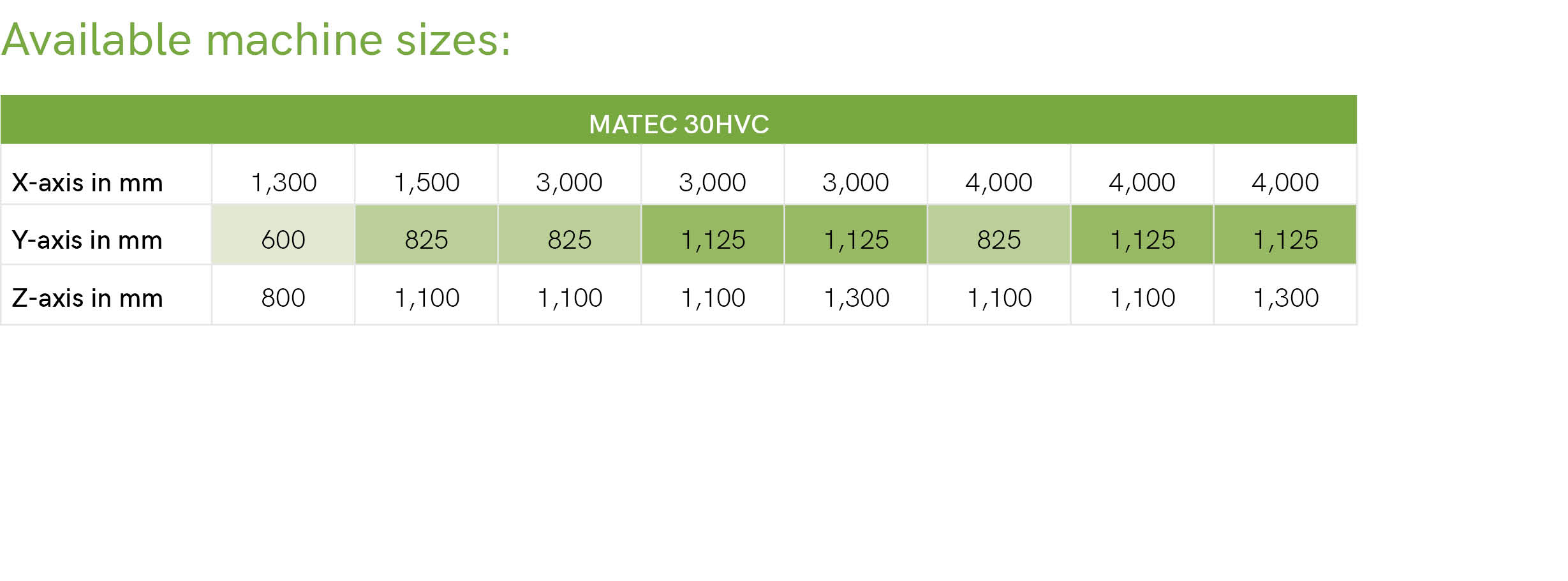

For Y-axis 600 mm: Ø 630 mm
For Y-axis 825 mm: Ø 800 mm
For Y-axis 1,125 mm: Ø 1,150 mm
